Chord XU2 Dual Channel Handheld UHF Radio Microphone System
Code: MX171014
Choose quantity
Order now for dispatch in 1-2 working days.
Description

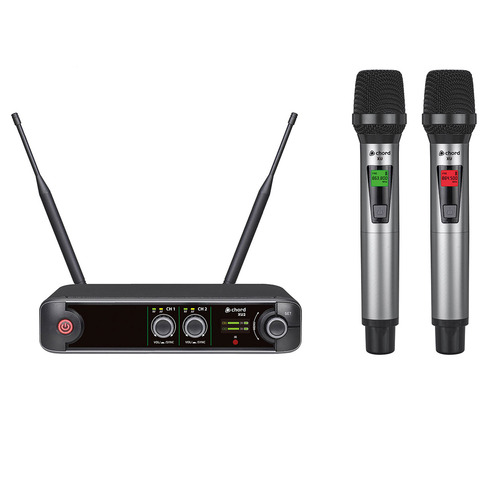

Chord XU2 Dual Channel Handheld UHF Radio Microphone System
Chord XU series wireless microphone systems offer pro-level features in a compact receiver with premium microphone transmitters. Supplied as a half-width 1U rack receiver with 2 channel & handheld microphones. The receiver is a true diversity type with dual antennas and internal distribution for minimizing dropouts. The front panel has a volume control and indicator LEDs per channel alongside a colour TFT display with level indications for each channel and settings for channel frequencies and colours. Each transmitter also has its own LCD display for frequency and battery status, with a backlight that can be set to one of 6 colours for identification.
Carrier frequencies are arranged in 10 groups with carriers in both the UK/EU license-free UHF and PMSE licensed duplex gap UHF bands. Each set is supplied with hardware for mounting into a 1U rack space with extension cables to enable front mounting of the antennas. For a wireless microphone system with straightforward operation and intuitive features, the XU series delivers freedom and reliable operation to vocalists, presenters and instructors in a compact and convenient package.
-
- Compact half-width rack receiver
- True diversity antennas with internal distro for reliable reception
- 10 groups of 9 selectable UHF carrier frequencies
- Selectable backlight colours for each channel
- 2 x XLR outputs + 1 x 6.3mm mix output
- Settings sync I.R. from receiver to transmitters
- Colour TFT display for settings menu
- Weight : lavalier microphone N/A
- Dimensions : lavalier microphone N/A
- Weight : neckband microphone N/A
- Dimensions : neckband microphone N/A
- Weight : beltpack transmitter N/A
- Dimensions : beltpack transmitter N/A
- Weight : handheld transmitter 246g (no battery)
- Dimensions : handheld transmitter 258 x 47mmØ
- Power supply 12-18Vdc, 500mA (mains adaptor supplied)
- Batteries 2 x AA per transmitter
- Carrier frequencies 823-832 / 863-865MHz
- Wireless range Up to 60m
- Antenna connection 2 x BNC
- Dimensions : receiver 205 x 205 x 44mm
- Weight : receiver 755g
Chord product code: 171.014UK
Details
In the Box
- XU2 true diversity UHF receiver

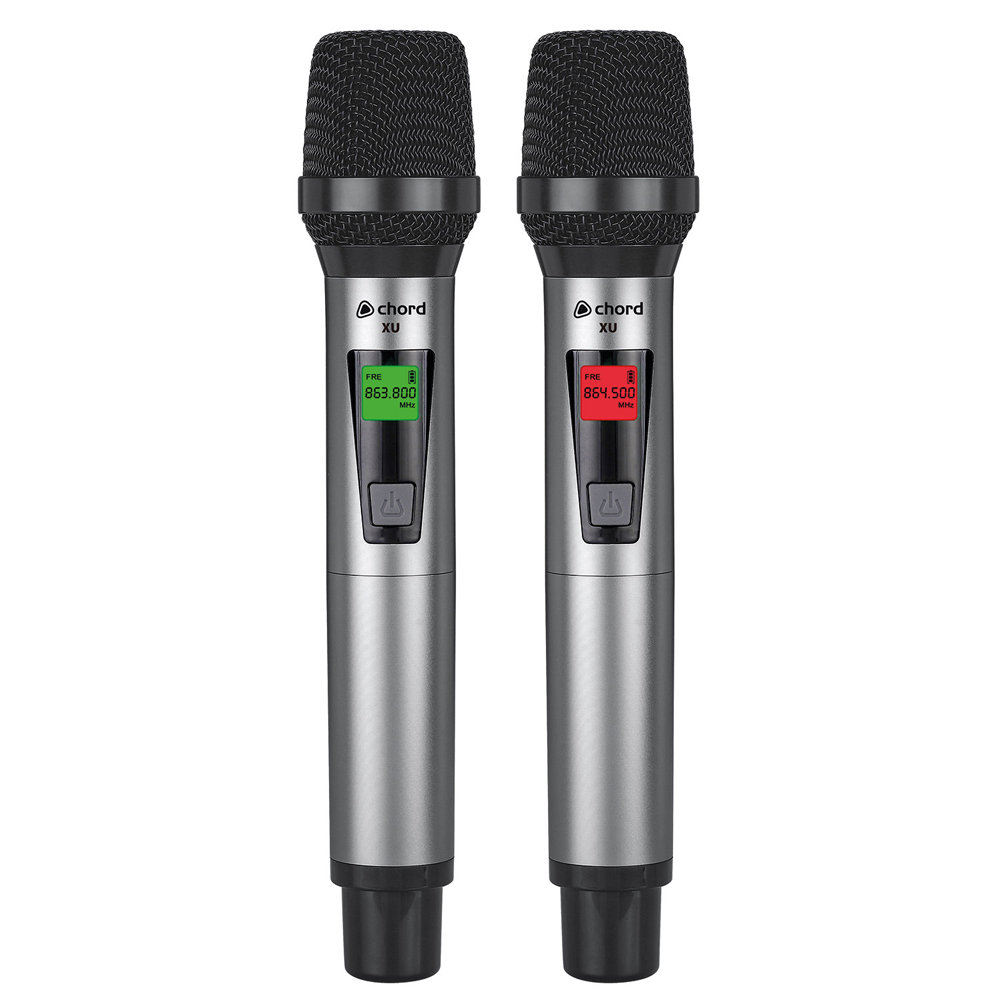

- 2 x handheld transmitters
- 2 x UHF antennas
- 2 x BNC antenna extension leads
- Rack-mounting brackets for receiver in a 19" 1U space
- UK power adaptor
- 6.3mm male to male cable
- 4 x AA batteries
