100V line UL 94V0 PA ceiling speaker via audio transformer
Code: MZMEDL26
£51.84
(£43.20
ex VAT)
Quantity Pricing
2
-
4
£51.46
each
(£42.88
each ex VAT)
5
+
£51.07
each
(£42.56
each ex VAT)
Choose quantity
Order now for dispatch on Tue 21st Apr.
Description
100V line via audio transformer with power taps white PA ceiling speaker with UL 94V0 flammability rating - 230mm diameter
- 100 V line technique via audio transformer with power taps
- Full range speaker with dual cone
- Plastic housing with protective metal grille
- Plastic material of ABS and self-extinguishing according to UL 94V0

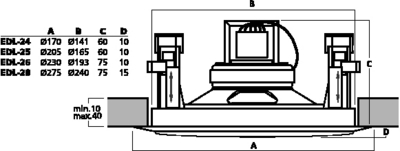

- For a ceiling thickness from 10 to 40 mm
MONACOR product code: EDL-26
Details
TECHNICAL DATA:
| Frequency range | 80-14,000 Hz |
| Power capability, 100 V | 10/5/2.5/1.25 WRMS |
| Power capability, 8 Ω | - |
| SPL (1 W/m) | 86 dB |
| Max. rated SPL | 95 dB |
| Type of speaker | 165 |
| Mounting cutout | 200 mm diameter |
| Mounting depth | 75 mm |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 230 mm diameter x 85 mm height |
| Weight | 910 g |
| Other features | - |
